Shelti Eye2 Dartboard Dollar Bill Validator Acceptor Kit - 110v

$319.99
Product Code: 68748
Condition: New
Brand: Shelti
Lead Time (Days): 1
Estimated Arrival: 4 - 7 Business Days
Stock Status: Out of Stock
Reset Selected Options
Back

Shelti Eye2 Dartboard Dollar Bill Validator Acceptor Kit - 110v

OEM part is perfect for Shelti Eye2 Dartboard.

Bill Validator is for the following games:

Shelti Dartboards:
Shelti Eye2

Includes:

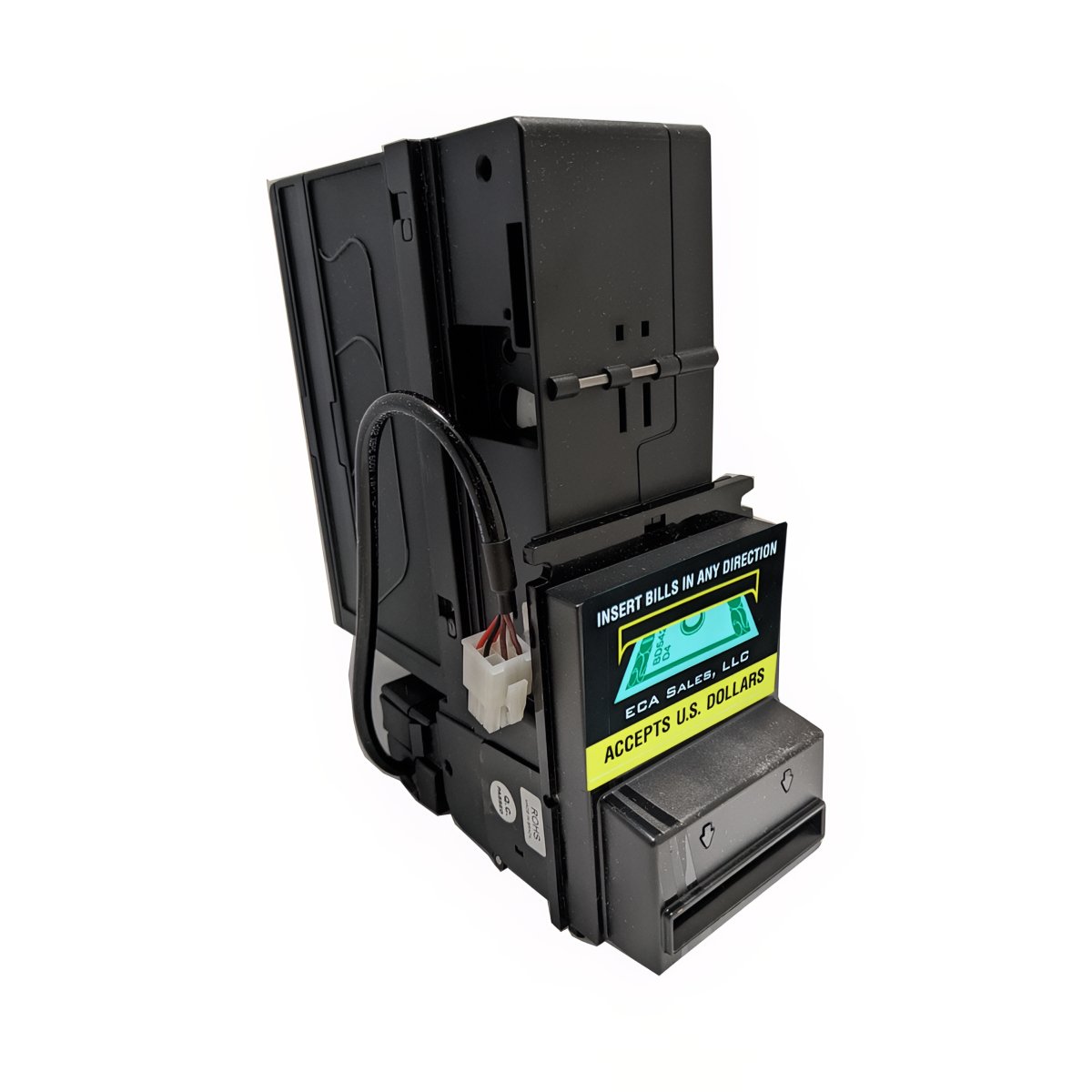

208-1019-0 x (1) Shelti Eye2 Dollar Bill Validator - 110v

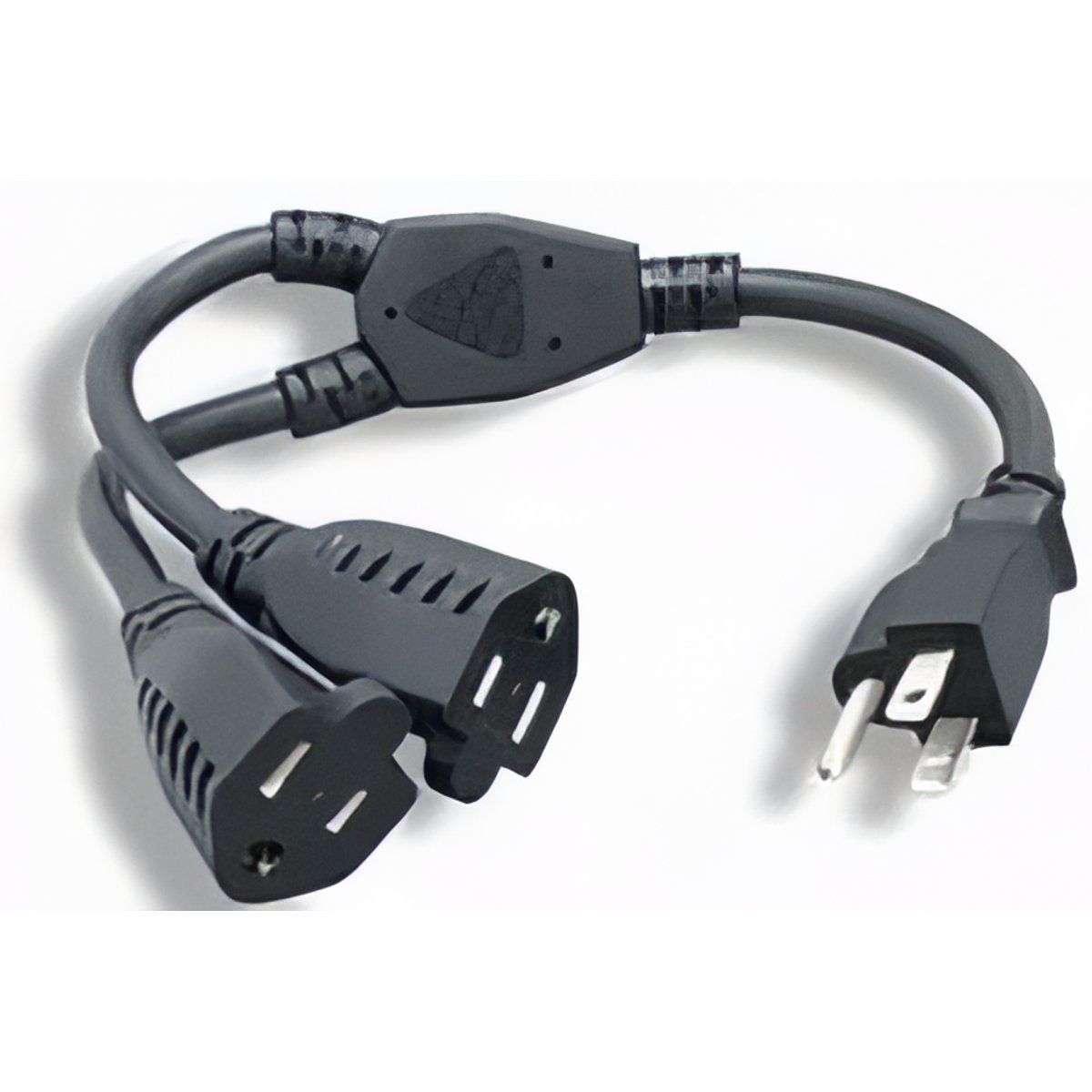

68747 x (1) Shelti Power Cord Extension and Splitter

The Shelti Eye 2 Bill Acceptor comes preprogrammed with one interface and can accept from $1 to $100 US Dollars.

Supply voltage of the unit is 11.0 to 13.5 volts DC. Logic levels are 0 to .5 volts DC low and 3.7 to 12.0 volts DC high. Please consult the full manual for additional information.

Unit bezel incorporates a hinge that allows the chassis of the bill acceptor to pivot away from the bezel for easier installation into space sensitive machines. Depressing the service access latches will allow the chassis to pivot on the hinge for installation or cleaning purposes.

Bezel LEDs

If an error has occurred the front lights of the unit will flash an error code. Operators can refer to their owner’s manual for additional information.

Dimensions:

7.5” L x 3.5” W x 9.25” H

2.15 lb.

Specifications below:
Weight (lbs.): 2.75
Game Room Guys sells only the highest quality products. This manufacturer offers a 1 year limited warranty. If you have any questions, concerns, or would like more details about this warranty, please give us a call and we will be happy to help.
